DVT or Deep Vein Thrombosis, is the formation of blood clot (thrombus) within deep veins, mostly in legs. It occurs because of reduce blood flow mainly due to long term immobility.
PE or Pulmonary Embolism, is the most dangerous and potentially fatal consequence of the DVT. The formed blood clot detaches and travels to the lungs, blocking an artery.
• DVT is the most common preventable cause of death in hospitals.It is ranked among the top 3 adverse medical outcomes in hospitals worldwide. There’s a severe underutilization of DVT prophylaxis (17.4%) in India against globally, (50.2%)

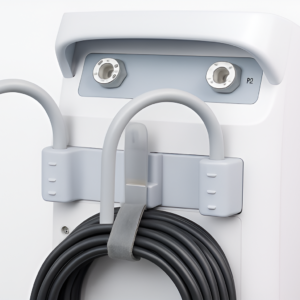

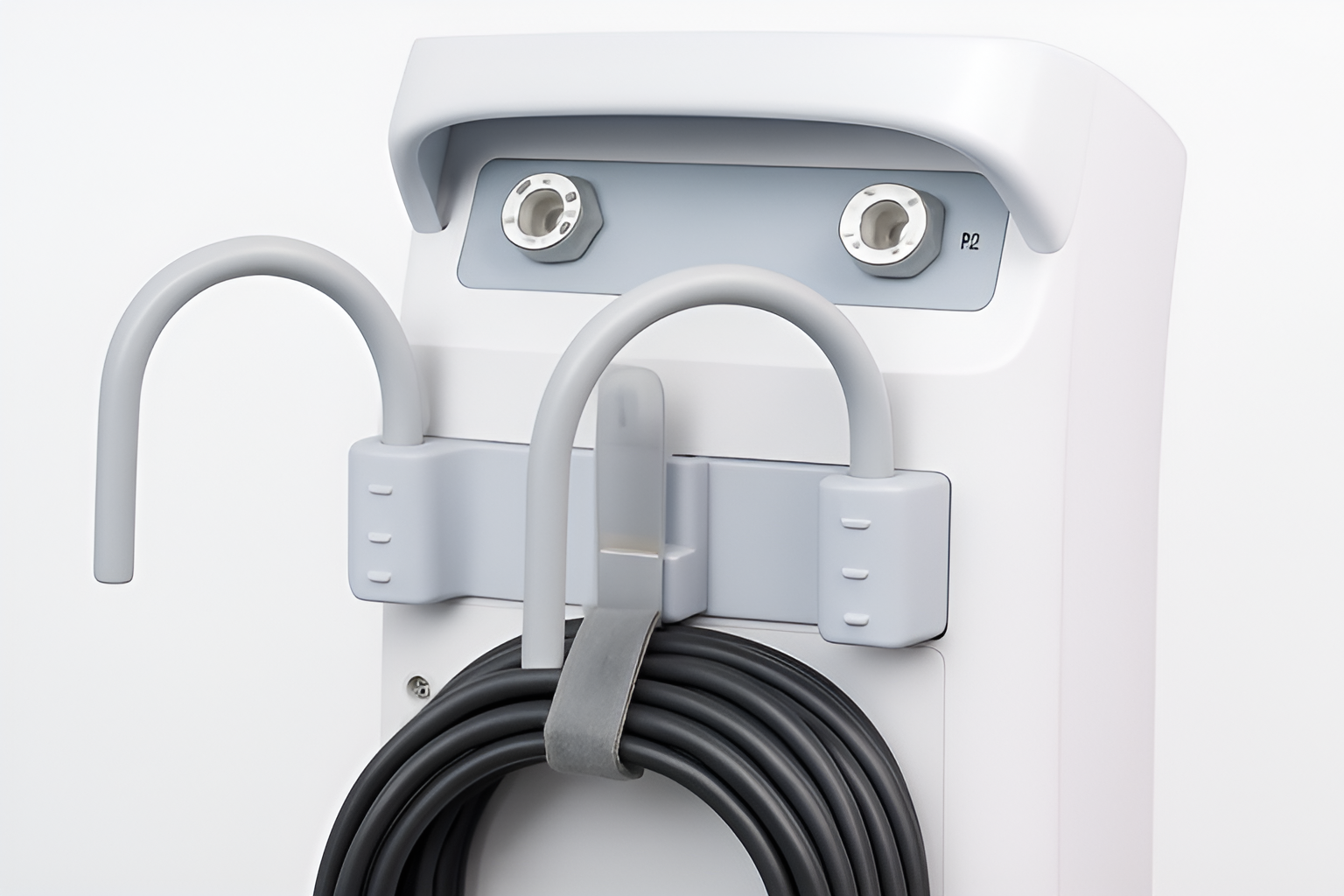

SMART CABLE MANAGEMENT – Minimizes cable and hose clutter for a cleaner setup.
INTEGRATED POWER CABLE – Built-in power cord eliminates risk of misplacement.
BUI LT-IN HOSE PAIR – Attached hoses keep accessories secure and always connected.
FOLDABLE MOUNTING HOOKS – Strong steel hooks ensure easy pump attachment to any bed rail.
INTELLIGENT ALARM TRIGGER – Alarms activate only after three consecutive abnormal cycles.
🔹 MADE IN INDIA
Designed and manufactured locally with patented technology.
🔹LIGHTWEIGHT & PORTABLE DESIGN
Easy to carry with a strong, durable body structure.
🔹 SILENT, VIBRATION-FREE OPERATION
Ensures user comfort with quiet and stable performance.
🔹 LARGE READABLE DISPLAY
A clear and easy-to-read screen enhances usability.
🔹 AUDIO-VISUAL ALARM SYSTEM
Alerts for pressure variations, power, and battery status.
🔹 ALARM MUTE FUNCTION
Temporarily disables alerts without interrupting operation.
🔹 INDIVIDUAL PORT LED DISPLAY
Dedicated LEDs indicate each leg/port activity status.
🔹 ALARM AUTO-CORRECT FEATURE
Automatically detects and corrects pressure errors (Patent Applied).

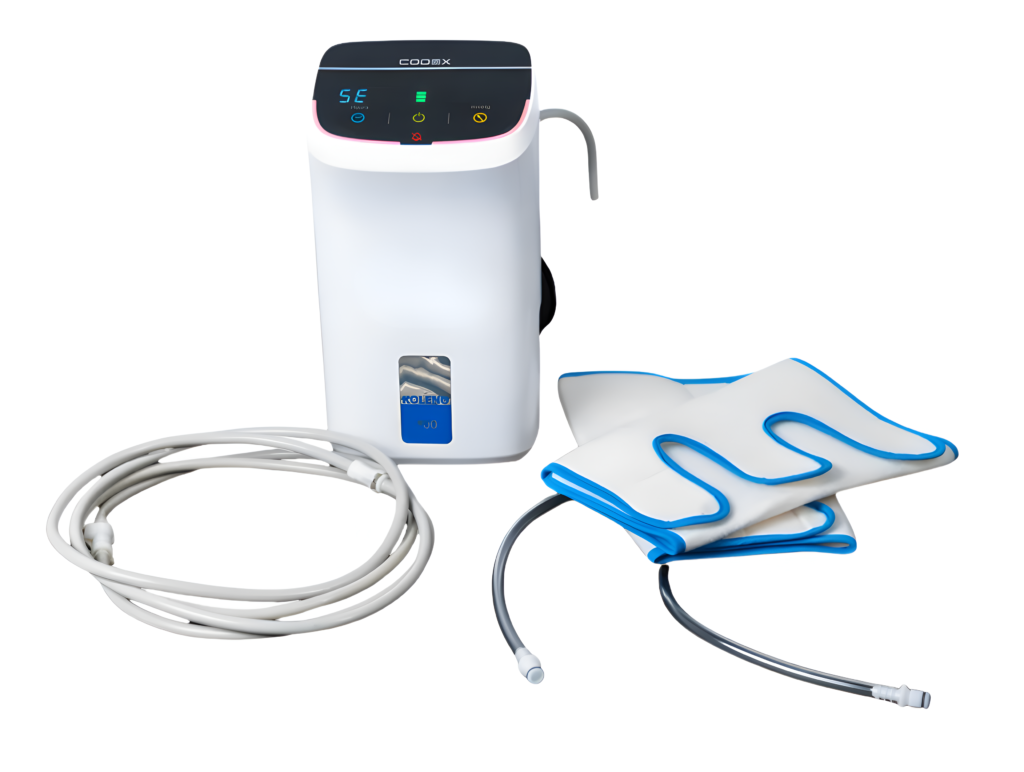

| Model | CODEX 900 DVT IPC Pump |
| Size | 6.5” L x 7.0” W x 12.8” H |
| Weight | 2.5 Kg |

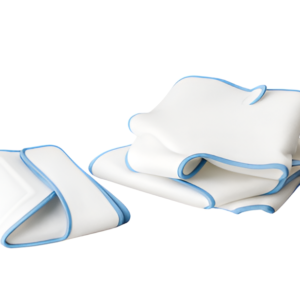

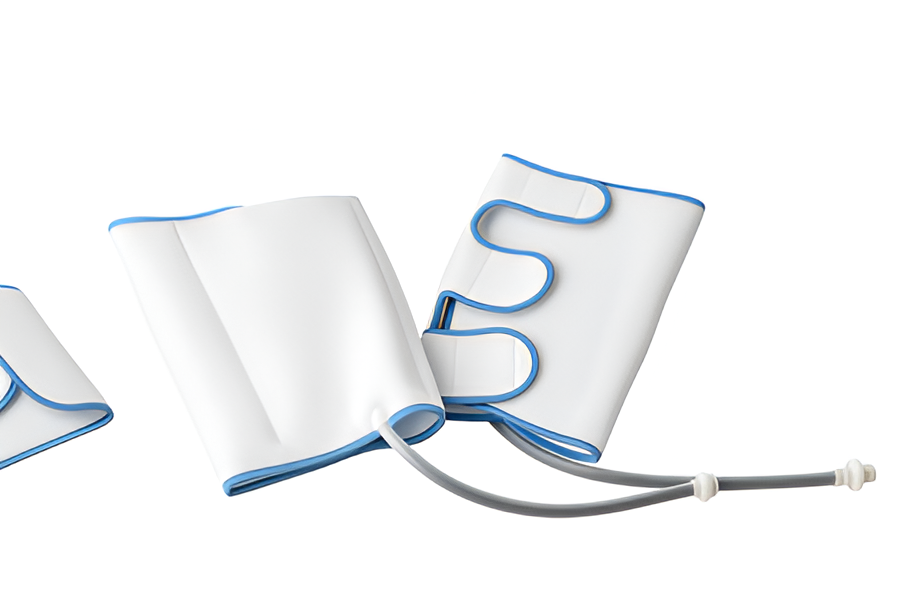

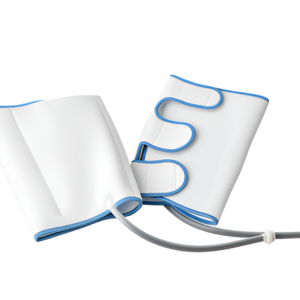

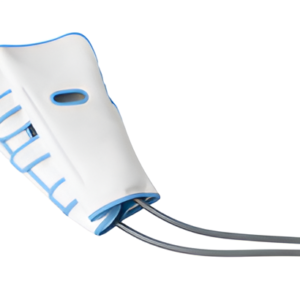

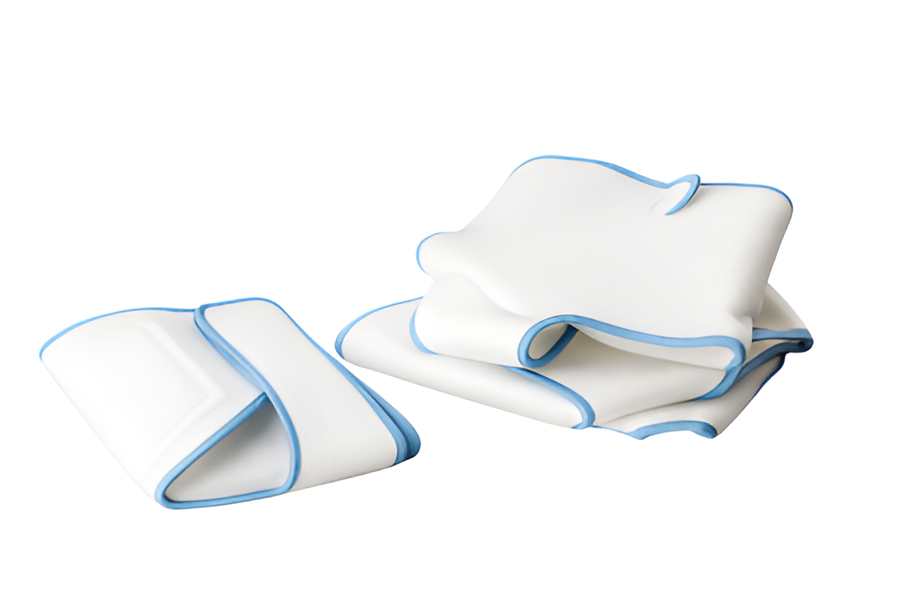

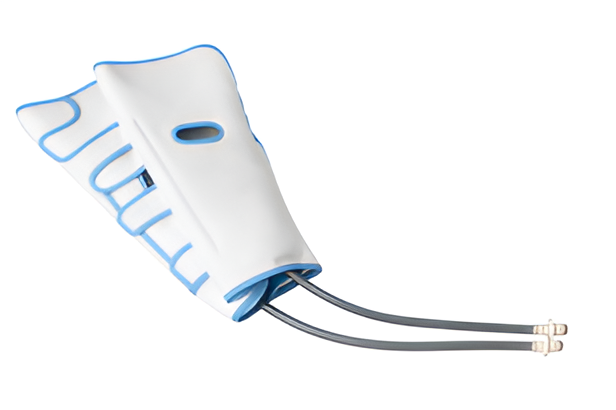

| Pressure Settings | Calf/Thigh Garment: 30, 40(default), 50, 60 mmHg Foot Garment: 120 mmHg |
| Input Rating | AC 100V-240V 50/60 Hz, 0.2A-0.55A |
| Fuse Rating | 1A, 250V, Slow Blow |
| Appliance Class | Class I, Type BF Not AP or APG type |
| Classification to FDA | Class II |
| Ingress Protection | IP20 |
| Cycle Time | Inflation: 12 seconds +/- 10% , Deflation: Cycle Time 48 seconds +/- 10% |
| Mode of Operation | Continuous |
