ECG or Electrocardiogram, is a diagnostic test used to measure the electrical activity of the heart. It helps in detecting irregular heart rhythms, heart attacks, and other cardiac abnormalities.

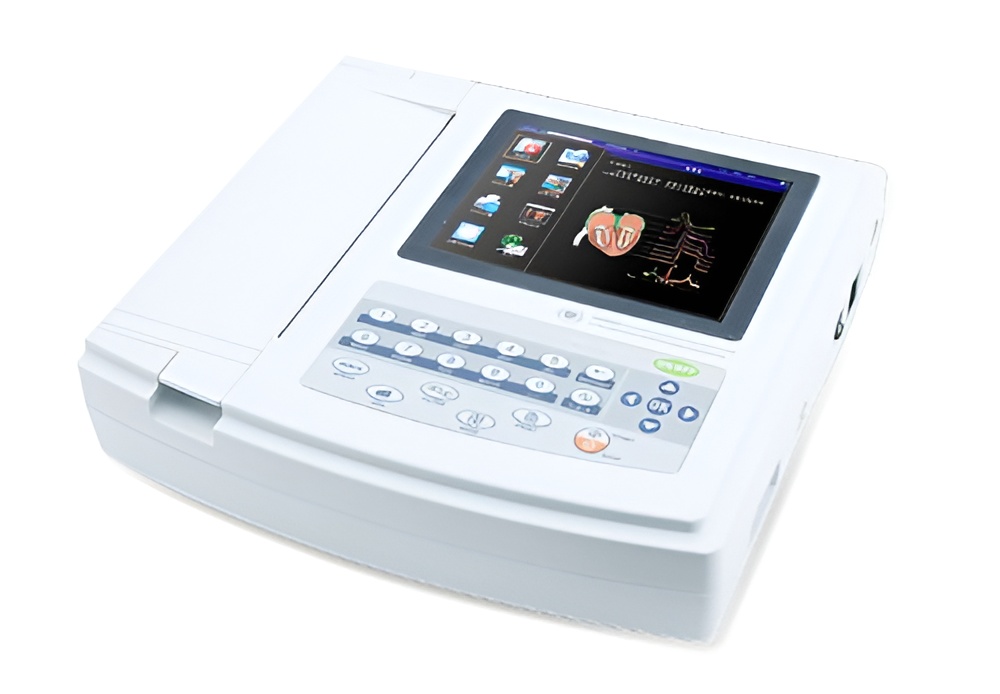

12 Channel ECG Machines provide simultaneous recording of 12 leads, offering a comprehensive view of the heart’s condition. This enables accurate diagnosis and faster clinical decision-making in hospitals and diagnostic centers.
• ECG is one of the most essential and widely used cardiac diagnostic tools in healthcare settings. Early detection through ECG helps in preventing severe cardiac complications and improving patient outcomes.
HIGH-ACCURACY RECORDING – Captures precise cardiac signals for reliable diagnosis.
SIMULTANEOUS 12-LEAD ACQUISITION – Provides a complete view of heart activity in real-time.

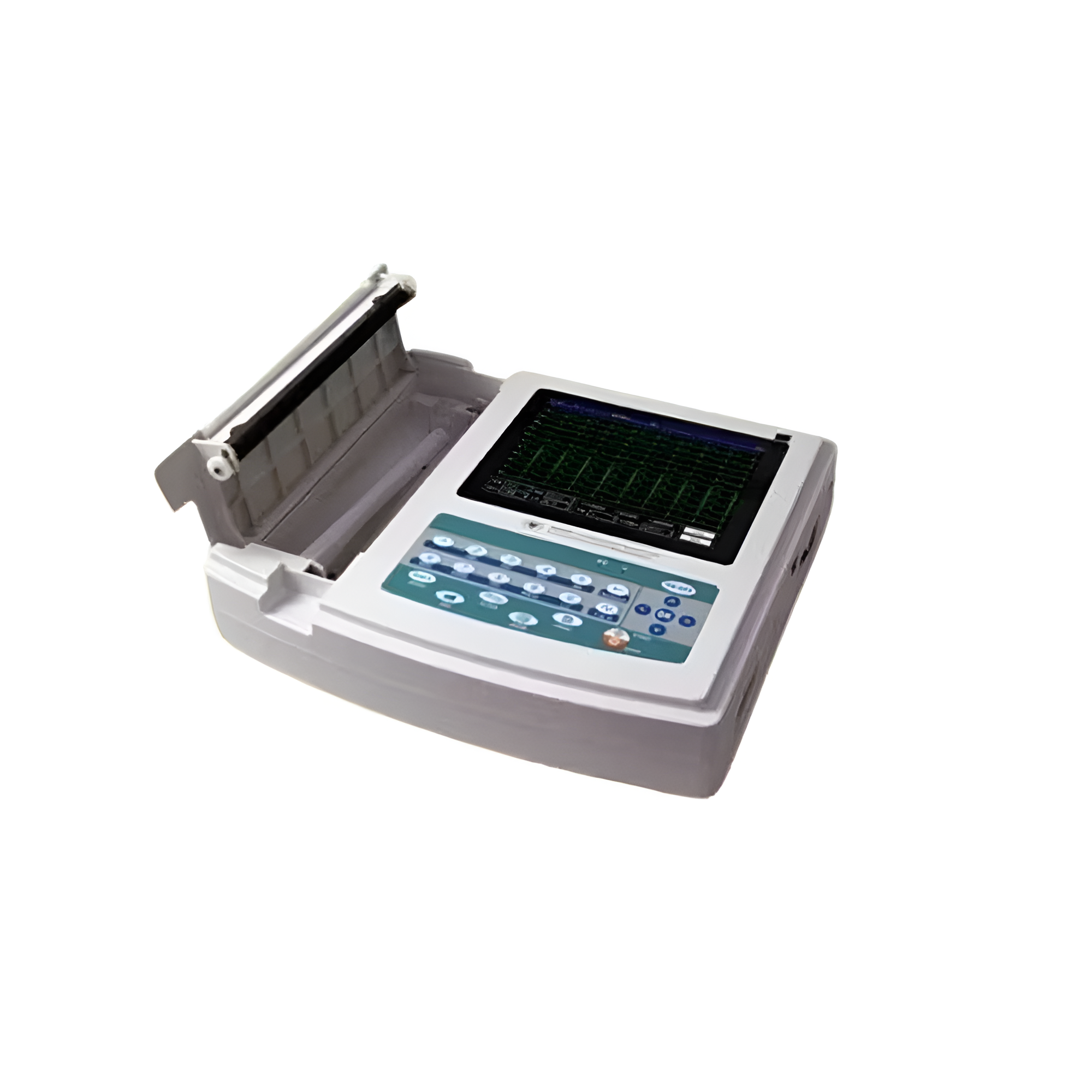

BUILT-IN THERMAL PRINTER – Enables instant printing of ECG reports for quick review.
COMPACT & PORTABLE DESIGN – Easy to carry and suitable for bedside and emergency use.
USER-FRIENDLY INTERFACE – Simple controls with clear display for efficient operation.

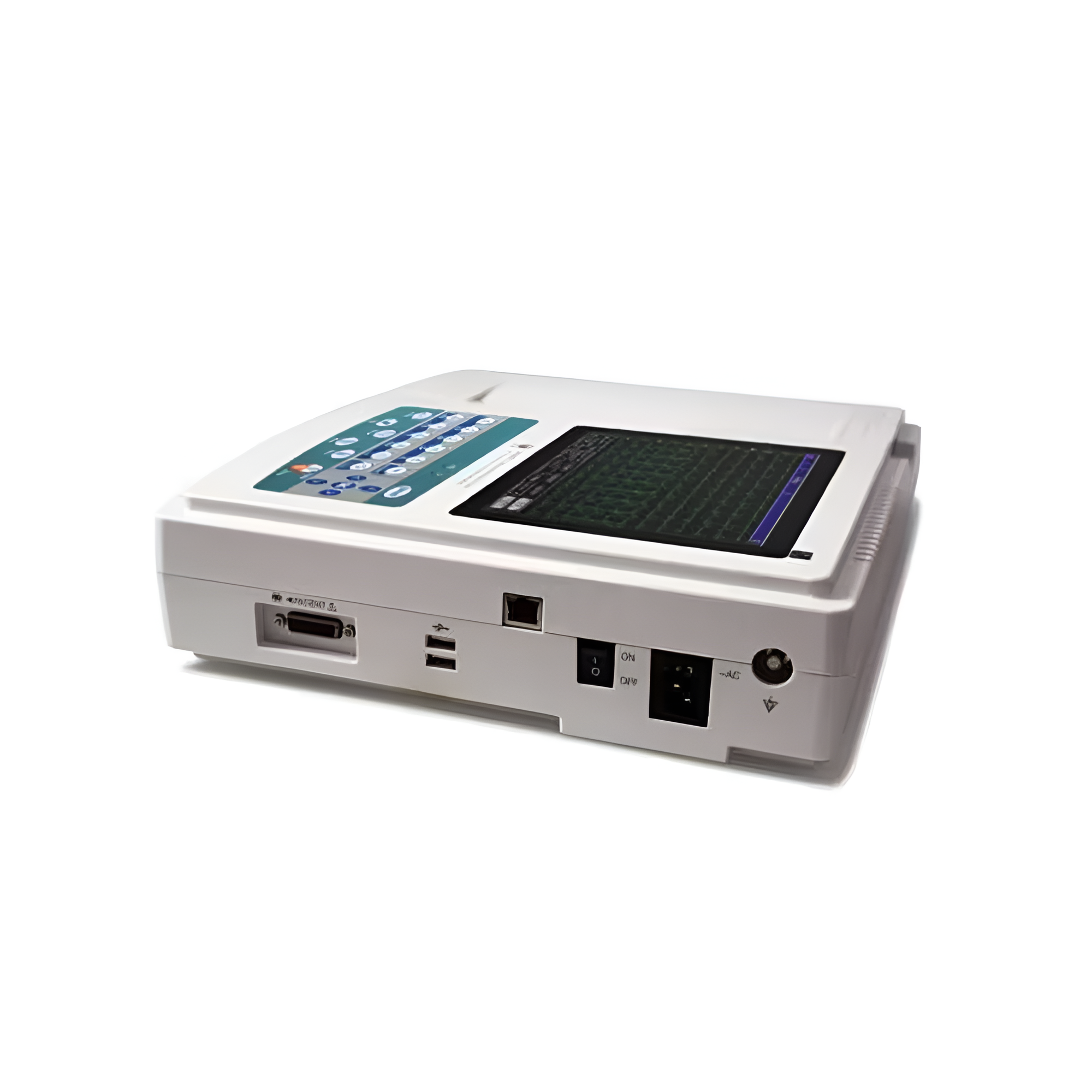

DATA STORAGE & CONNECTIVITY – Stores patient data and supports USB/PC integration.

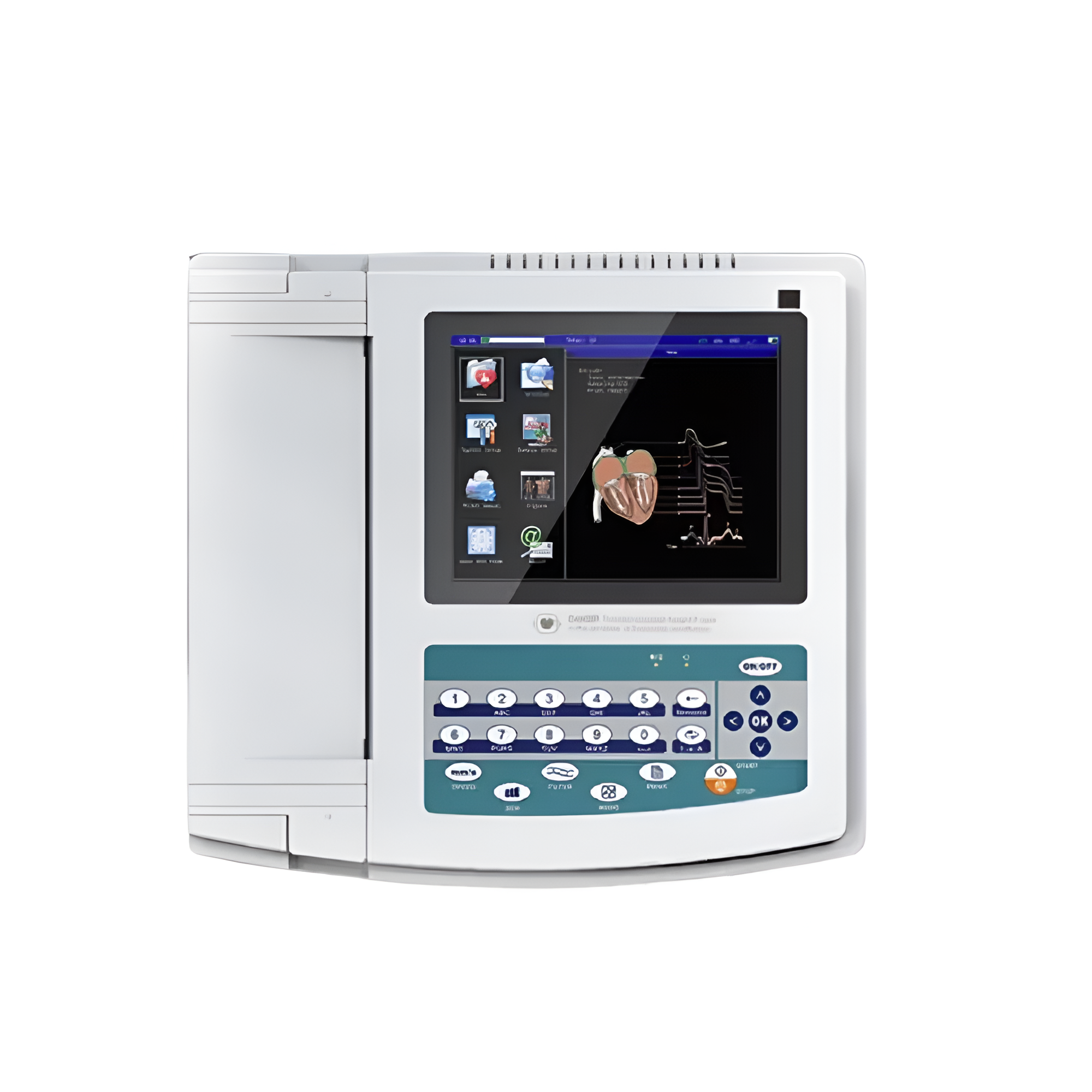

🔹 TFT Color LCD Display
Clear visualization of ECG waveforms and system status for easy operation.
🔹Preview Before Printing
Review ECG waveforms on-screen to avoid paper wastage and improve workflow efficiency.
🔹 12-Lead Simultaneous Acquisition
Captures accurate, real-time ECG signals from all 12 leads at once.
🔹 Advanced Digital Processing
High-quality ECG waveform output through enhanced AC filtering and digital signal processing.
🔹 Multiple Filters for Clear Tracings
Built-in Baseline and EMG filters minimize noise and movement artefacts.
🔹 Versatile Printing Modes
12-lead, 6+1 rhythm, Rhythm (12/10/8/6), Manual, Freeze mode.
🔹 Adjustable Output & Periodic Printing
Modify printing signal amplitude and set periodic printing for various clinical needs
🔹 Auto Measurement & Interpretation
HR, PR interval, P duration, QRS duration, T duration, QT/QTc, P/QRS/T Axis, R(V5), S(V1), R(V5)+S(V1).
🔹 Multi-Format Display Options
View 3/6/12-lead ECG waveforms along with operating modes, sensitivity, paper speed, pacer, and filter settings.
| Input mode | Floating and defibrillation protection |
| Frequency response | 0.05Hz ~ 150Hz(-3dB~+0.4dB) |
| CMRR | >60dB, >100dB(add filter) |
| Time constant | ≥ 3.2s |
| Calibration voltage | 1mV |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV ±5% |
| Standard sensitivity | 10mm/mV±2% |
| Noise level | ≤15μVp-p |
| Input circuit current | ≤50nA |
| Input impedance | 12-bit |
| Safety classification | thermal printing system |
| Paper size | 210mm(W)×20m(L) |
| Sampling frequency | 1000Hz |
| EMG interference filter | 25Hz/35Hz (-3dB) |
| Power frequency filter | AC 50Hz/60Hz(-20dB) |
| Measurement parameters | HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
| Power supply | AC: 100V~240V(50/60Hz) DC: 14.8V/3500mAh rechargeable lithium battery |
| Fuse specification | two AC time lag fuse(φ5×20mm), T1.6AL250V |
| Waterproof degree | IPX0 |
| Working mode | continuous working |
| Paper speed | Rhythm - 25, 50mm/s, ±5%, Auto - 25, 50mm/s, ±5%, Manual - 5, 6.25, 10, 12.5, 25, 50mm/s, ±5% |
