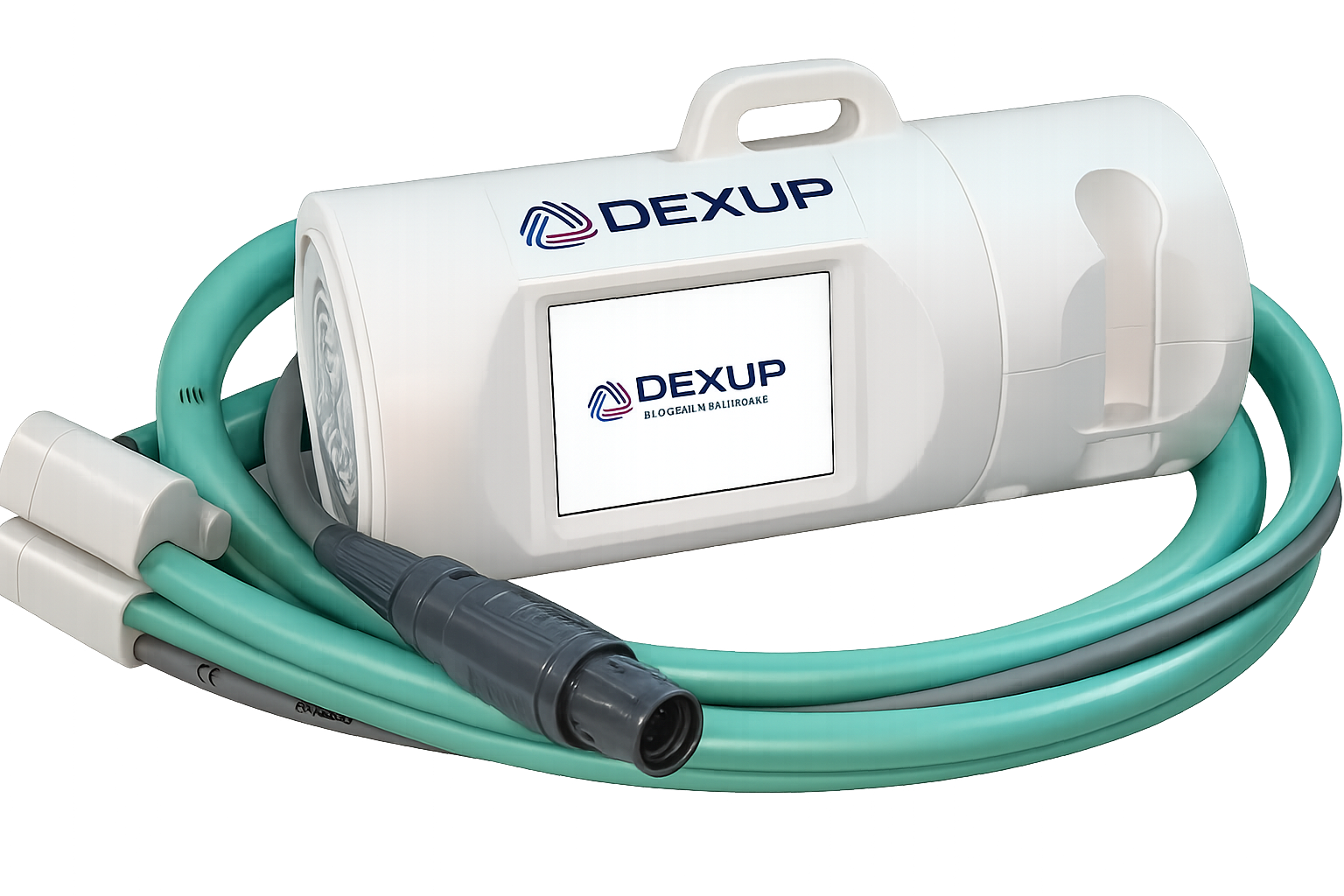

A compact and high-precision fluid warming system designed to rapidly warm blood and IV fluids, helping prevent hypothermia during transfusion and infusion procedures. Its dual-channel design ensures efficient and consistent temperature control for critical care environments.
• Blood Transfusion
• High Volume Infusion Therapy
• ICU & Critical Care
• Operation Theatres
• Emergency & Trauma Care
• Neonatal & Pediatric Care
A light, ergonomic design and convenient trolley mounting options make the Blanket Warming Unit a desirable choice for patient warming needs.
Dual Channel Heating
Simultaneously warms fluids through two independent heating channels for faster and efficient performance.
Precision Temperature Control
Adjustable temperature range from 32°C to 43°C with fine control for safe and accurate warming.
Rapid Heating System
Quickly raises fluid temperature to desired levels, reducing patient heat loss.
Lightweight & Portable Design
Lightweight and portable design for easy manoeuvrability.
Intelligent Display Interface
Shows real-time temperature, set values, working time, and system status.
Advanced Safety Protection
Built-in high & low temperature alarms, overcurrent protection, and automatic shutdown for patient safety.
Compact & Portable
Lightweight (~1 kg) design makes it easy to use in ICU, OT, and emergency setups.
| Parameter | Specification |
|---|---|
| Model | FW S 100 |
| Design | Composed of control device and heating silicone tube |
| Temperature Setting Range | 32°C-43°C, adjustable in 0.1°C steps |
| Liquid Outlet Temperature Deviation | ±2.0°C |
| Heating Time | Heating tube warms from 23 ± 2°C to 36°C in a short time |
| Display Parameters | Current temperature, running/working time, real-time status |
| Safety - High Temperature Protection | multiple protection Visual & auditory alarm; mechanisms |
| Power Supply | 100-240 VAC, 50 Hz, 10 A |
| Power Cord Length | 5 meters |
| Display Size | 2.4 inches |
| Weight | ≤1kg |
| Dimensions (cm) | 20 (L), 7 (Diameter) |
| Service Life | 5 years |
| Operating Environment | Ambient temperature 5-30°C, relative humidity as specified |
| Standard Configuration | Fluid Warmer x1, Heating Silicone Tube x1, Adapter x1 |
| Length (mm) | 600 to 2800 |
| Diameter (mm) | 3.5 |
