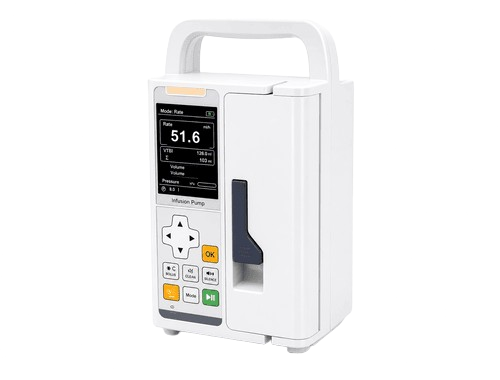

The Infusion Pump is designed to deliver accurate and continuous administration of fluids, medications, and nutrients with enhanced safety and precision. It is ideal for hospitals, ICUs, emergency care, and surgical applications requiring controlled infusion therapy.
The device features an intuitive user interface, intelligent monitoring system, and adjustable infusion settings that enable healthcare professionals to manage therapy efficiently. Its compact and portable design ensures reliable performance in both clinical and home healthcare environments.
| Specification | Details |
|---|---|
| IV Set Compatibility | Compatible with all standard IV sets |
| Display | Large COLOR TFT display with adjustable brightness |
| Work Modes | Rate Mode, Time Mode, Dose Mode, Sequential Mode, and Drug Library Mode |
| Drug Library | Supports up to 1030 drug names (Optional) |
| Bolus Function | Manual & Automatic Bolus with KVO support |
| Anti-Bolus System | Reduces sudden flow after occlusion release |
| Battery Backup | Up to 6 hours internal battery continuous operation |
| Alarm System | Audible & visual alarms for all failures and high/low flow conditions |
| Working Status Display | Dynamically displays real-time operating status |
| Occlusion Levels | Three selectable levels: High, Middle, and Low |
| Accuracy | ±2% infusion accuracy |
| Delivery Rate Range | 0.1 ml/h – 1200 ml/h |
| Rate Adjustment | 0.1 ml/h step up to 99.9 ml/h, 1 ml/h step above 99.9 ml/h |
| Delivery Time Range | 00h01min – 99h59min (1 min step) |
| Volume Limit Range | 0.0 – 9999 ml (1 ml step) |
| Total Volume Range | 0.0 – 9999 ml (1 ml step) |
| Purge Rate | 600.0 ml/h (Adjustable) |
| KVO Rate | 0.1 – 5.0 ml/h, programmable and adjustable |
