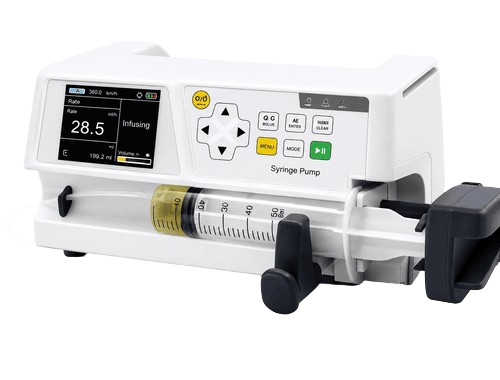

The Syringe Pump is designed to deliver precise and continuous medication administration with high accuracy and safety. It is ideal for ICU, neonatal, OT, and critical care applications where controlled low-volume infusion is essential.
Its user-friendly interface, intelligent monitoring system, and compact portable design enable healthcare professionals to manage infusion therapy efficiently and reliably in both hospital and emergency care environments.
| Specification | Details |
|---|---|
| Syringe Compatibility | Accepts all standard syringes: 5ml, 10ml, 20ml/30ml, 50ml/60ml |
| Display | Large COLOR TFT display with adjustable brightness |
| Bolus Function | Manual and Automatic Bolus function with KVO support |
| Work Modes | Rate Mode, Time Mode, Dose Mode, Sequential Mode, Drug Library Mode (Optional) |
| Anti-Bolus System | Reduces sudden flow after occlusion release |
| Syringe Detection | Automatically identifies syringe specifications |
| Battery Backup | Up to 6 hours internal battery continuous operation |
| Alarm System | Audible & visual alarms for syringe holder loose, plunger disengagement, occlusion, syringe empty, infusion complete, low battery, and more |
| Accuracy | ±2% with correct calibration |
| Total Volume Range | 0.1 – 9999.9 ml (0.1 ml step) |
| Flow Rate | 0.1 ml/h – 2000.0 ml/h |
| Time Range | 00:01 – 99:59 min (1 min step) |
| Bolus Rate | 5ml: 0.1–200 ml/h, 10ml: 0.1–400 ml/h, 20ml: 0.1–800 ml/h, 30ml: 0.1–1200 ml/h, 50ml: 0.1–2000 ml/h |
